Passive Test Meter:-




A full description is coming soon. Then again this may be all you get.

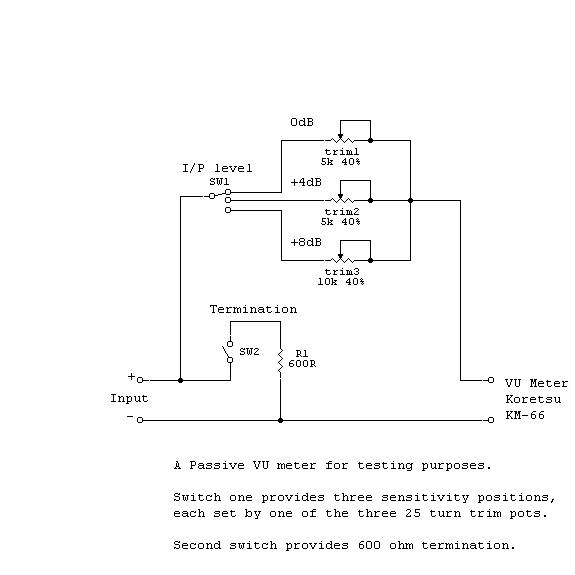

Passive Test Meter




Add your choice of connectors in parallel to give input and output so you can monitor a signal in situ.
Can also be used as a format changer. XL3 input with 6.5 mm phono output and so on.

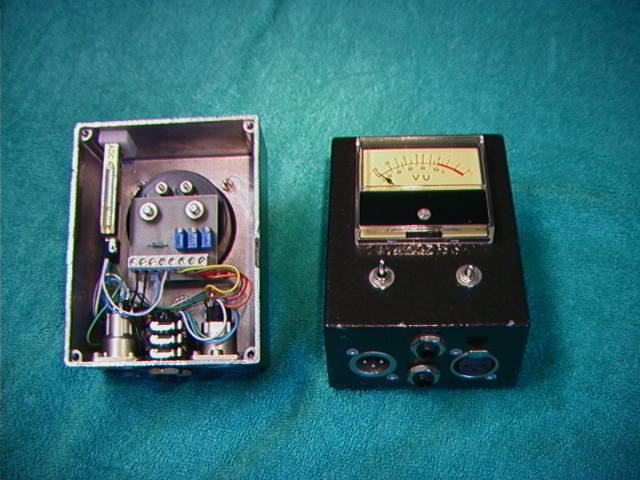

My units have:
XL3 male and female
Two 6.5mm phono jacks
and a single Bantam connector.









© Kevin Ross 2001
